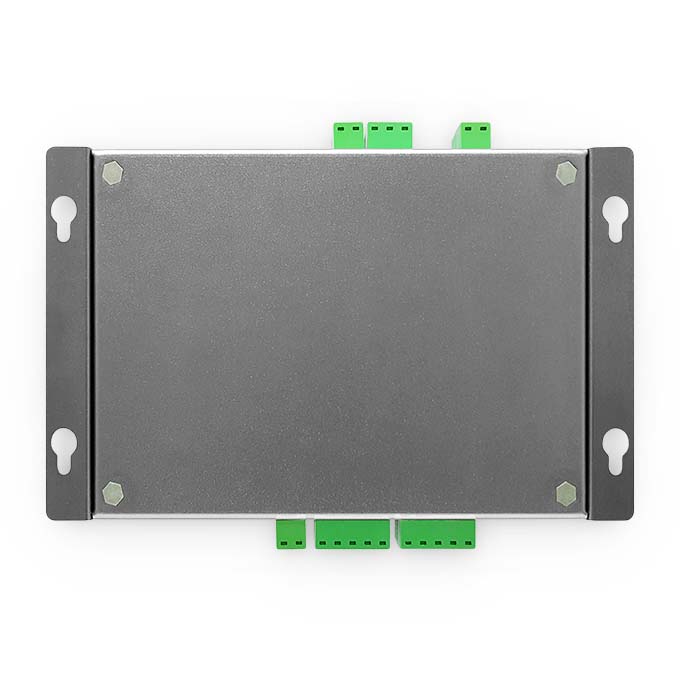

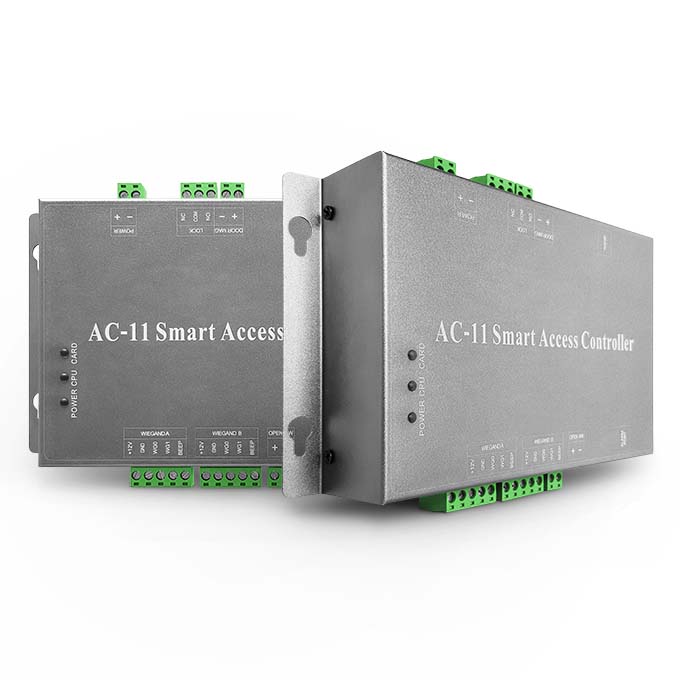

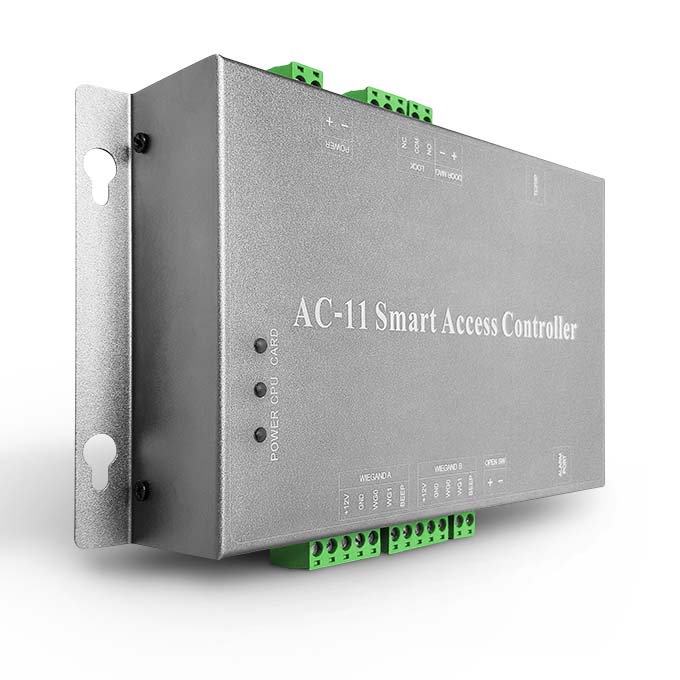

AC-11 Active Network Control Panel

Introduction

JUTAI Active Network Control Panel built In Web Server where network configuration such as IP address, subnet mask, server IP can be easily done upon; No more factory programming needed as the firmware can be upgraded via the on-board web server. Super Network Processor and Combined with Mass Storage Technology, adopting super network processor and combined with mass storage technology, and which can achieve real network data exchange.

High Performance

Based on the latest HCB (Hybrid Compact Board), JUTAI Active Network Control Panel is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. this control panel can fulfill most demanding requirement in physical access control environment.

Built In Web Server

Built-in web server where network configuration such as IP address, subnet mask, server IP can be easily done upon; No more factory programming needed as the firmware can be upgraded via the on-board web server.



High Performance

Based on the latest HCB (Hybrid Compact Board), JTAC-11 is a high reliability, high efficiency and highly integrated intelligent multi-application control panel targeted for physical access control industry. this control panel can fulfill most demanding requirement in physical access control environment.



Door Interlocking

In 1 doors interlocking within the control panel, no need external wiring. Cross-board interlocking is achievable by checking the interlocking signal coming from second control panel before granting the accessibility to the local control panel.



Super Network Processor And Combined With Mass Storage Technology

Adopting super network processor and combined with mass storage technology, and which can achieve real network data exchange.



Technical Specification

Operating Temperature -20 °C ~ +70°C
Card Holder 26,000 users
Event Transaction 100,000
Relay output 2 groups 7A door lock relay output
Work voltage DC9V to 14V
Work current <350mA
Access Level Unlimited Access Level
Time zone 64 groups
Digital Output Max 4Dry Contact Relay
Network Communication Port RJ-45 Self-Negotiate 10/100mbps
Protection Supporting Power Protection/ Surge Protection
On board LED Control Power / Communication / LAN / Event / Error
Data base ACCESS or SQL



Feature Highlight

  • Support Single Door
  • Unlimited Access Level
  • Support Car Park Mode
  • Support Dynamic Reader Location
  • Compatible with Various Reader Technologies
  • Peer To Peer Global Anti-Passback
  • Configurable Digital / Supervised Inputs (8)
  • Event Based Triggering (EBT)
  • Unlimited Access Level
  • Onboard & Cross-Board Interlocking
  • User Counting (Card Holder / Car Park)
  • Advance Encryption Standard (AES)
  • Reader Output Control
  • Support 26,000 Users And 100,000 Events Memory



Basic System Diagram
