1.Product Description

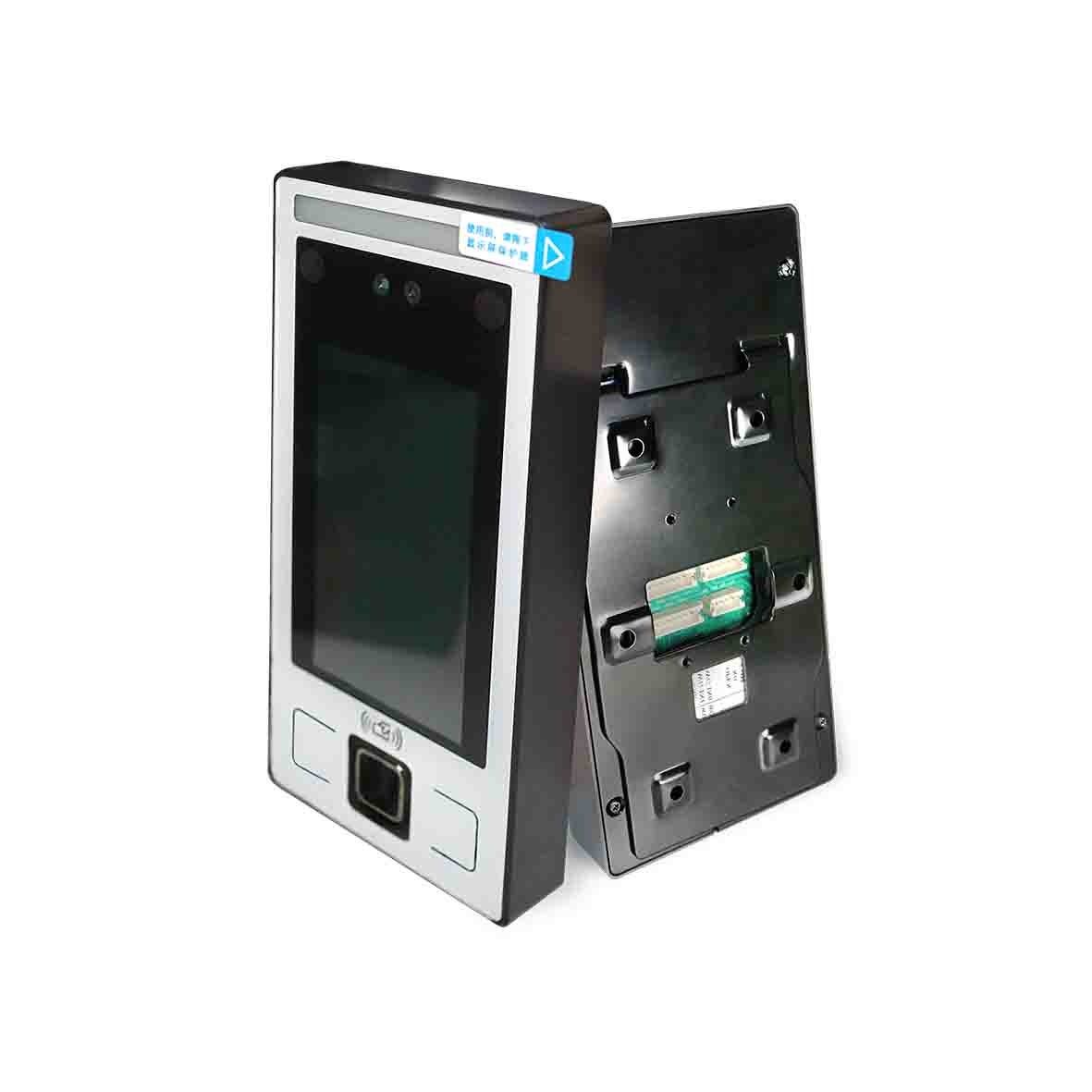

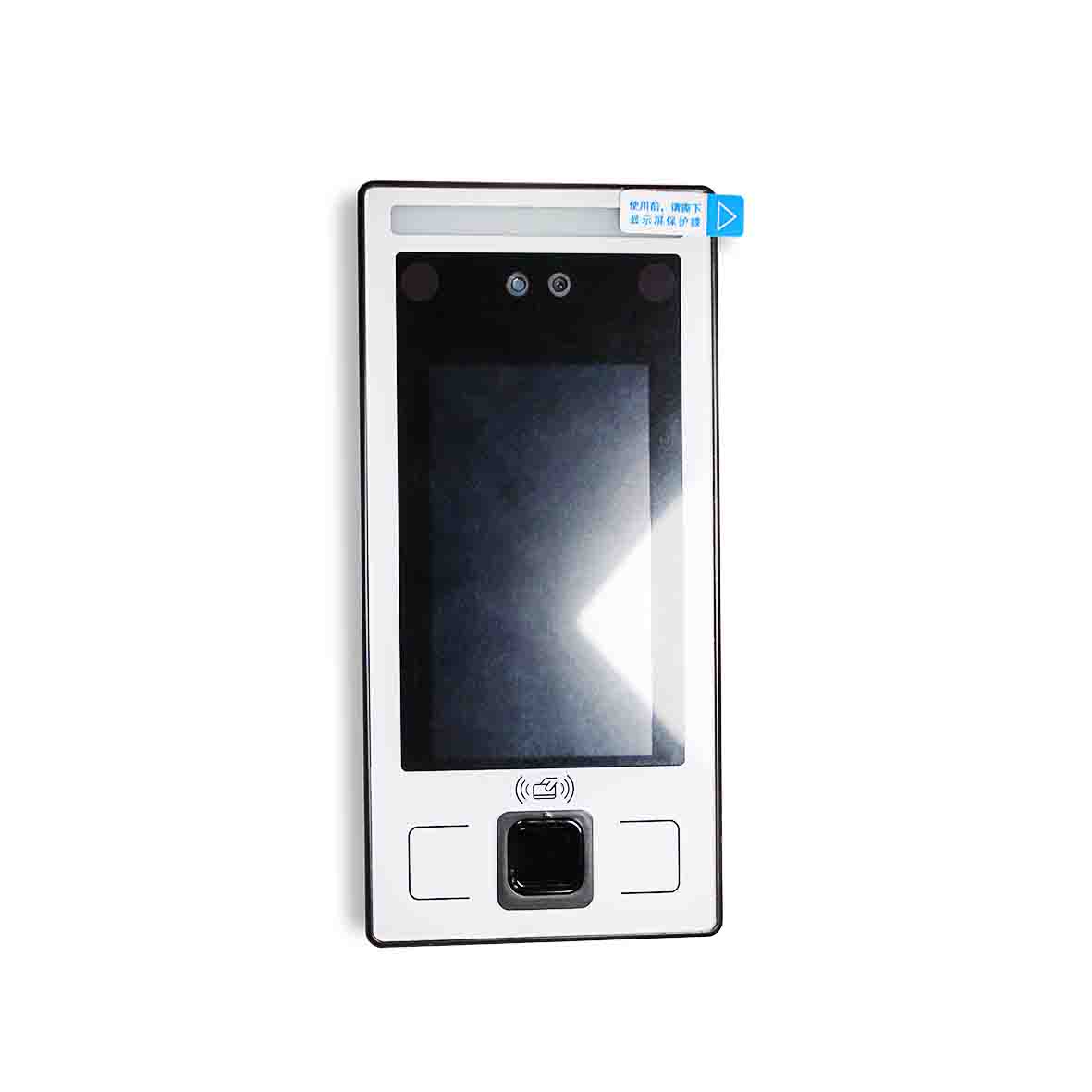

FR-8100T is a wide dynamic face recognition terminal product developed based on deep learning dynamic face access control machine, combined with CPU, GPU computing power and ISP image acceleration function of the camera. The product supports live detection, which can prevent cheating attacks such as photos and video streams.
Imported lens is preferred for the whole machine. IPS full view high-definition LCD screen and its body are made of all metal electroplating, waterproof, dust-proof, and salt fog proof, which can realize normal use in outdoor and strong light environments. The identification distance is 0.3-2m, Support photo distribution registration.
2.Product Parameters
- FR-8100T inbuild one way TCP network communication; One way WIFI communication; One USB communication, one is connected to the mouse or USB flash disk, and the other is connected to the ID card module; One WG input; One WG output; One way access control or gate signal control; Support regular ringing and blacklist alarm functions; Support screen sleep, screen saver and timed restart functions to reduce power consumption during non-use time.
- After customizing the auxiliary communication line, it can also realize more functions such as 485 communication,internal switch button, alarm bell, fire linkage signal light, etc.
- FR-8100T can be widely used in the real name system of site labor service, smart community passage system,high-end office building hall passage management system, various club member management systems, scenic spot ticket system and other scenarios.
3.Basic Datasheet
| Main purpose: access control, time attendance, elevator control host | Records memory:100000 Records、10000 Records Photo、10000 System Records |
| User capacity: 5000 face, 5000 card, 5000 passwords, 5000 fingerprint | Algorithm support: Mask recognition, live recognition, helmet recognition |
| Power supply: DC12V (DC9~14V) | Access control interface protocol:Wiegand26/34/66 |
| Working current: 2000mA | Communication method: TCP/IP (WIFI be optional) |
| Identify speed: < 0.3s | Elevator extension: support elevator/cabinet lock control board extension interface |
| Working temperature: -10℃ ~ 65℃ | Relative humidity: 10% ~ 90%RH(no condensation) |
| Firmware upgrade: support OTA upgrade or USB flash disk firmware upgrade | Other interfaces: exit switch × 1, door magnetic interface × 1, fire protection input × 1, alarm output × 1, wiegand output × 1, wiegand input × 1, door lock control × 1, USB × 1, RS485 × 1 |
| Operating system: LINUX system | Management mode: Touch management, CS system management |
| Storage capacity: 512M DDR3, 8GB EMMC | Registration method: face, fingerprint, password, IC card (CPU card, ID card, IC card and ID card are supported) |
| Camera: wide dynamic binocular 2 million high-definition camera | Weight: 0.3Kg |
| Display: 4.3 inch IPS full view HD screen | Material: ABS body + acrylic panel |
| Comparison method: 1:N / 1:1 | BS cloud system management (mobile phone management, WeChat management) |

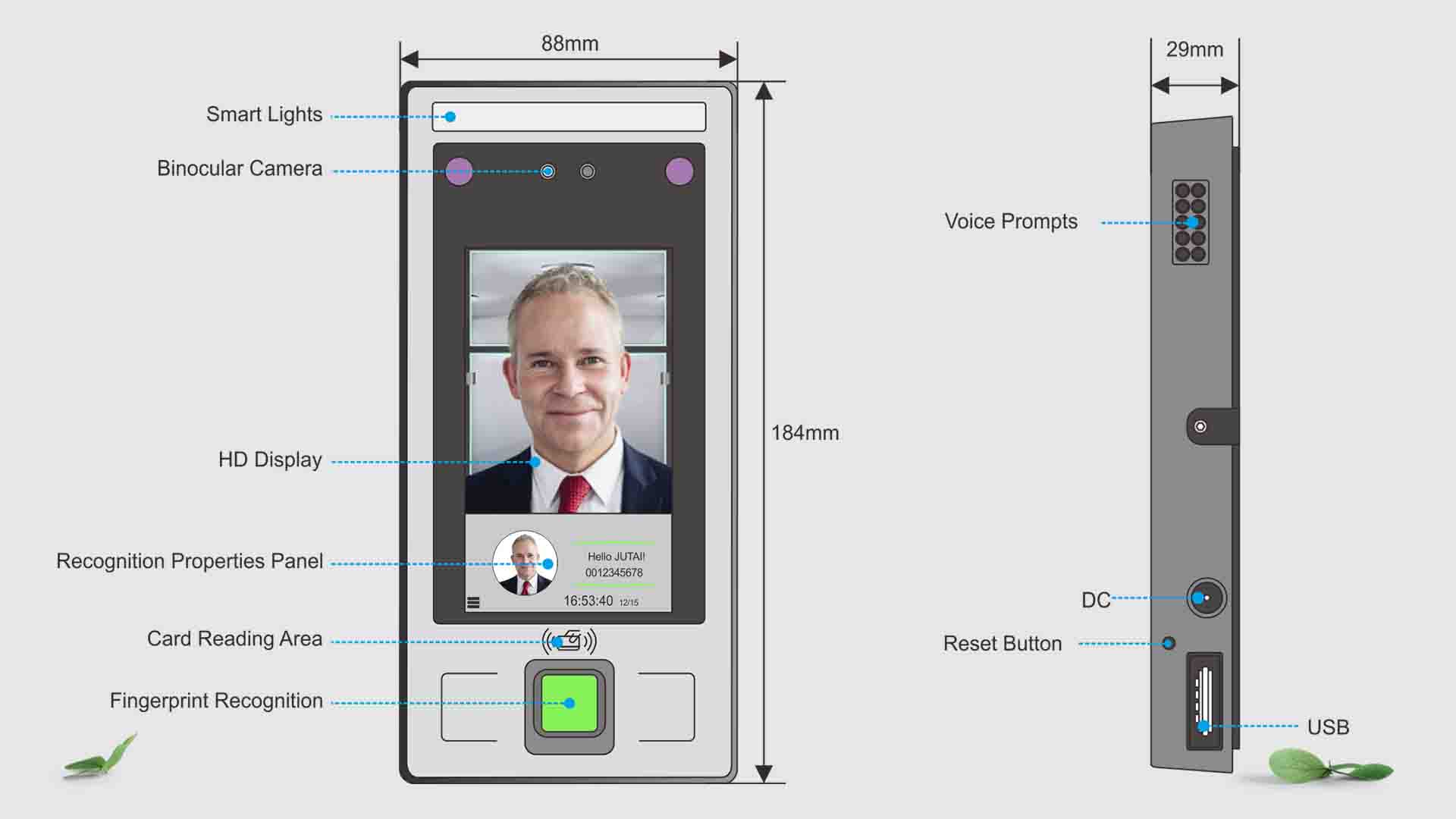

| Size: 184×88×29mm | |
4.Basic Function
- FR-8100T is a dynamic face recognition product and supports live detection.
- Identification distance between 0.3m and 3m.
- Support outdoor strong light recognition.
- Support registration free and certificate verification functions.
- Support photo distribution registration.
- Support secondary development, WebSocket (BS architecture), socket (CS architecture)
- The turnstile can be used as the face recognition access management for the construction site, residential area, office building, etc.

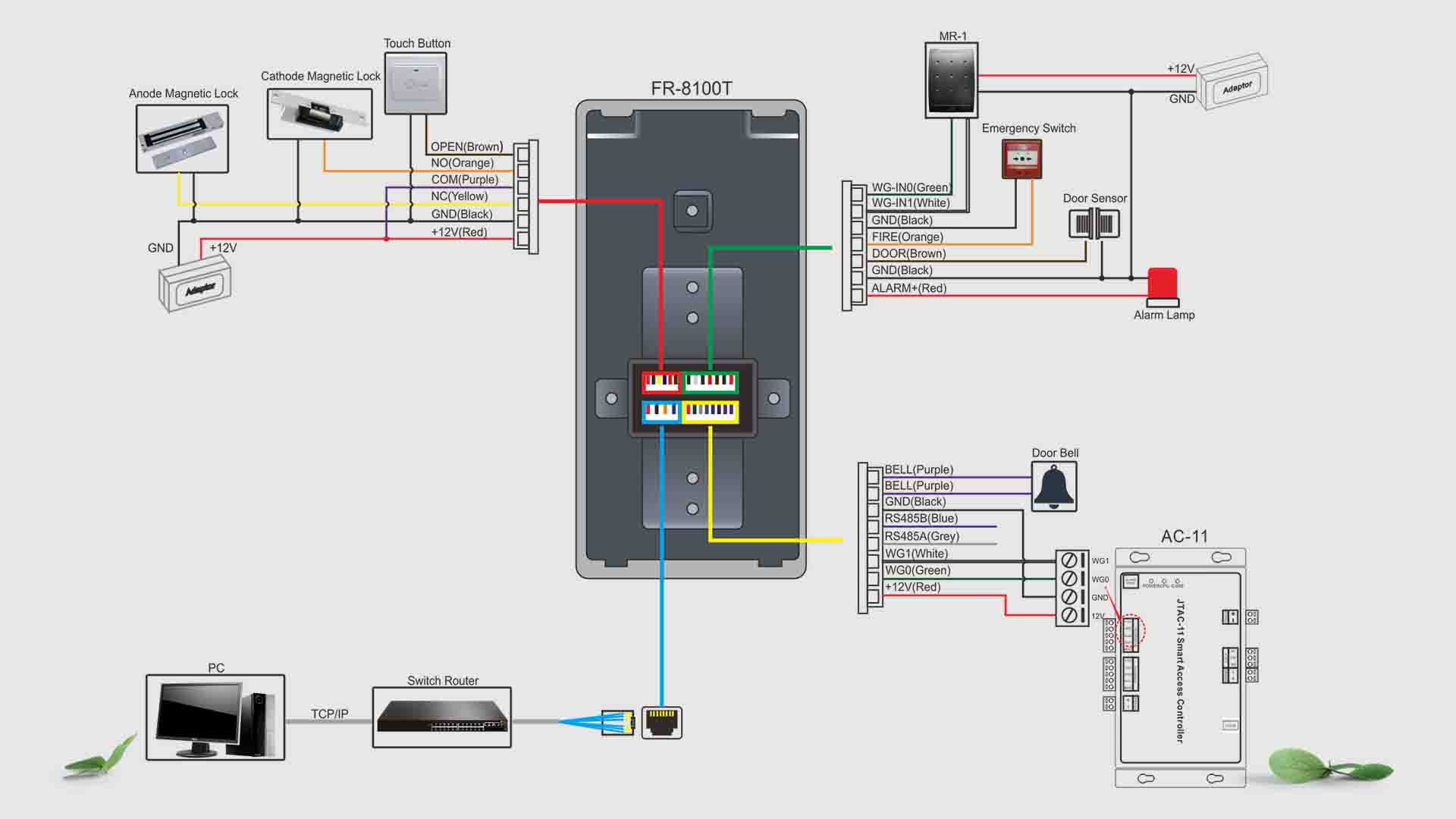

5.Connection Details
6.Working Software
Local software: JUTAI all-in-one access control management system software.
