Introduction

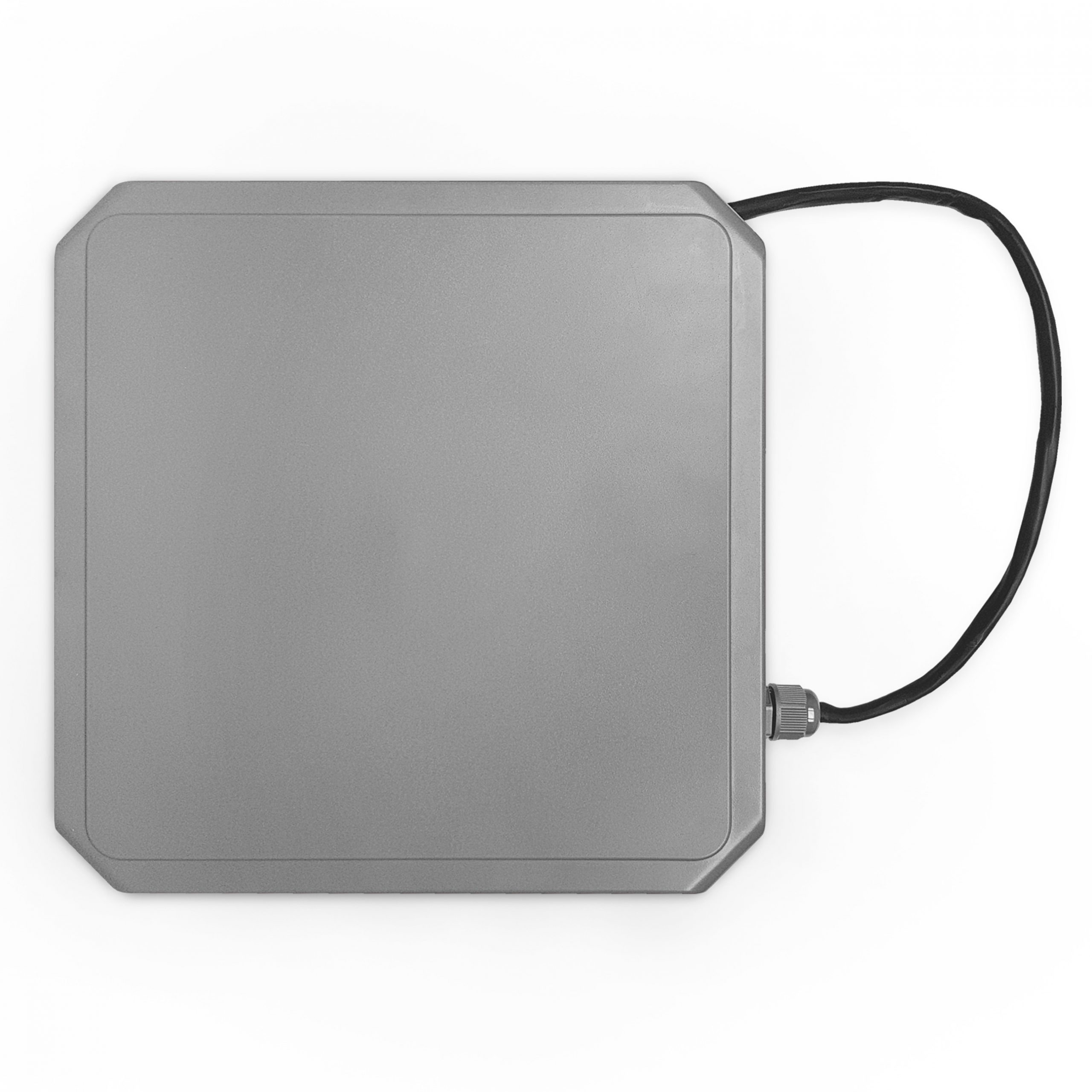

JUTAI PUHF-9P is an ultra high frequency long range wiegand reader read up to 7 meter (free air reading) depends on the interference on site and proper card reading angle.
JUTAI PUHF-9P compatible with multi-protocol, integrated design, quick read, multi-tag read and can used widely in RFID systems. UHF has limited signal penetration against tinted solar film.
JUTAI PUHF-9P complete with mounting bracket and power supply, housing made of PET material which is weatherproof against sunshine and rain.
JUTAI PUHF-9P Reader can only working with JUTAI UHF cards/Tags/Stickers, we write a password into reader and cards/tags/Stickers ,and Prevent interference from external UHF cards and maximize the benefits of Projects integrators.
Ideals for access control tracking system, car parking
Product Overview
♦ Integrated UHF long range reader, using the UHF band RFID technology, which has the following characteristics;
♦ Operating frequency is from 902-928MHz, adjusted according to different countries and regions;
♦ Directional antenna technology, recognizes only the front of the card reader;
♦ Power is less than 0.5W, in line with international environmental standards;
♦ Used in a metal chassis, or used independently;
♦ Reading distance 8-10 meters (depending on the antenna);
♦ Support eligible ISO1800-6B, ISO1800-6C (EPC G2) protocol passive RFID cards;
♦ Using standard wigand 26/34 output interface for direct access to wigand Interface System;
♦ Working modeground :sensor mode or continuous mode;
♦ Reserve RS232 \ RS485 interface, which can be connected to a PC.
Basic Function
Data Transmission Line
After reader powered card reader immediately into the search mode or trigger mode and receive data packets from the electronic tags, and then output.
Reader Antenna Polarization

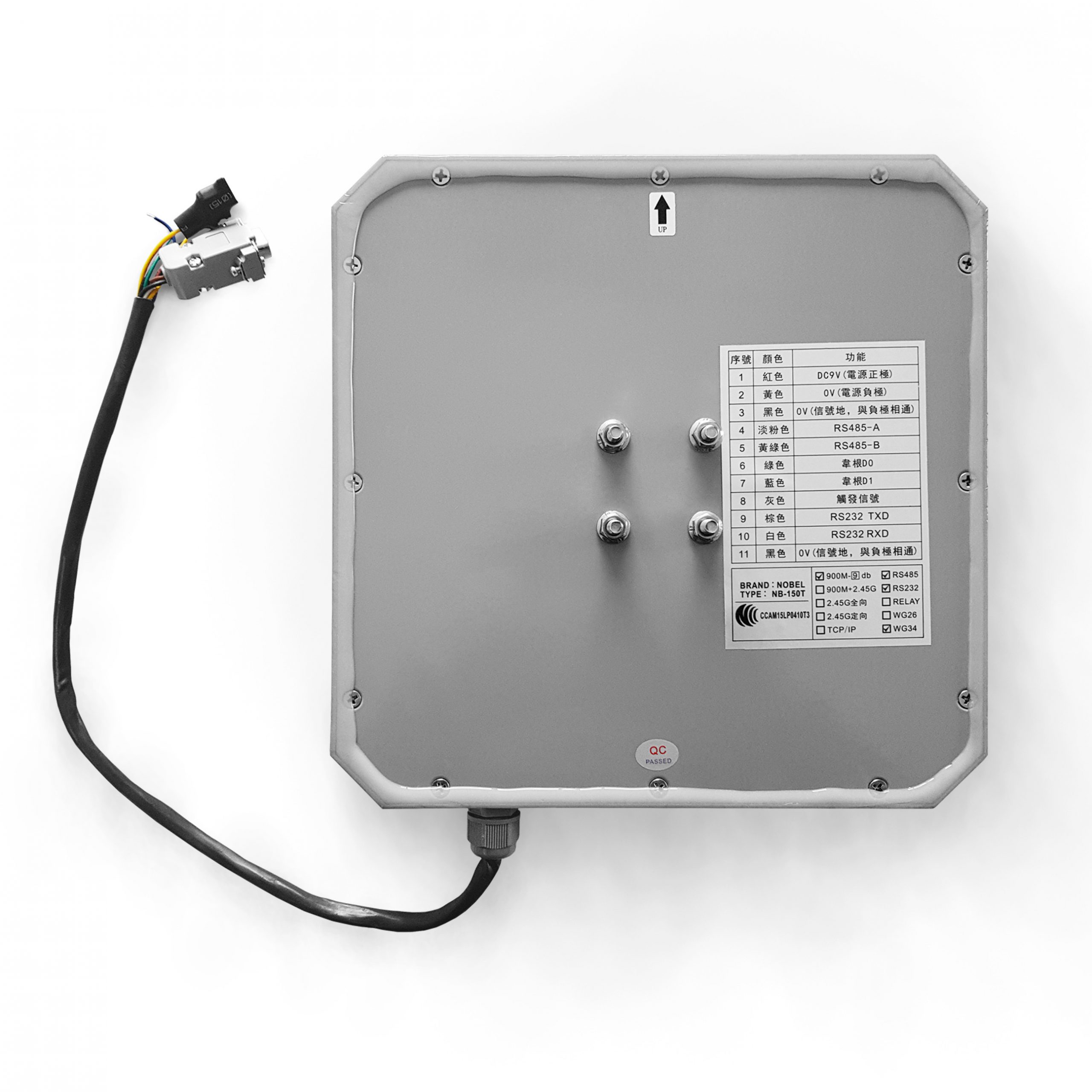

Wiring Diagram
| Red | DC+9~12V | Blue | WG D1 |
| Light Pink | RS485A+ | Brown | TXD —(RS232) |
| Black | 0V | Green | WG D0 |
| Yellow Green | RS485B- | White | RXD —(RS232) |
| Black | 0V Ground | Yellow | Short cut to loop signal |
Installation And Commissioning
The entrance and exit readers were installed at both ends of the corner of the booth to prevent signal interference.
Commissioning
Readers should not face to each other to avoid reading conflicts.
The distance between two readers is at least 2.5m.
U-shaped mounting bracket can be used to adjust the angle of the reader in order to achieve the best reading distance.
Power Up
When powered on, the buzzer will ‘Didi’ even rang twice, then the device to work. If you do not hear the sound, check the power supply is connected correctly.
Reader Test
Let the cards in front of the reader to move around. After reading card Number, the buzzer will sound and the red LED will blink inside the panel.
Do not stick the card in the palm of the hand or on the body, and do not use the card posted on the metal object, it will affect the reader results.
Installation Guide
Operation Constraints
Reading range will decrease if there is metal tinted solar film such as Air-cool and etc. UHF can NOT pass through solar film with heavy metal oxide such as VKOOL. If heavy metal oxide total block UHF signal, might require user to wind down windows for about 20cm to allow UHF signal penetration into car and read card.
For best reading result, recommended to cut a rectangular slot on the film to allow UHF signal to pass through.
Distance Between Windscreen And Card
Best distance between car windscreen and card minimum 10mm clearance. Card should not attach directly to the windscreen surface.
UHF Card Specification
Ordering Information
♦ PUHF-9P reader complete with power supply and mounting bracket
♦ PUHF-L1P Passive Sticker
♦ U6C-9BP Passive UHF Card
♦ CU-96P:UHF card+13.56MHZ dual frequency card
♦ DU-59P:UHF card+125MHZ dual frequency card
♦ CS-56:Card Sticker
